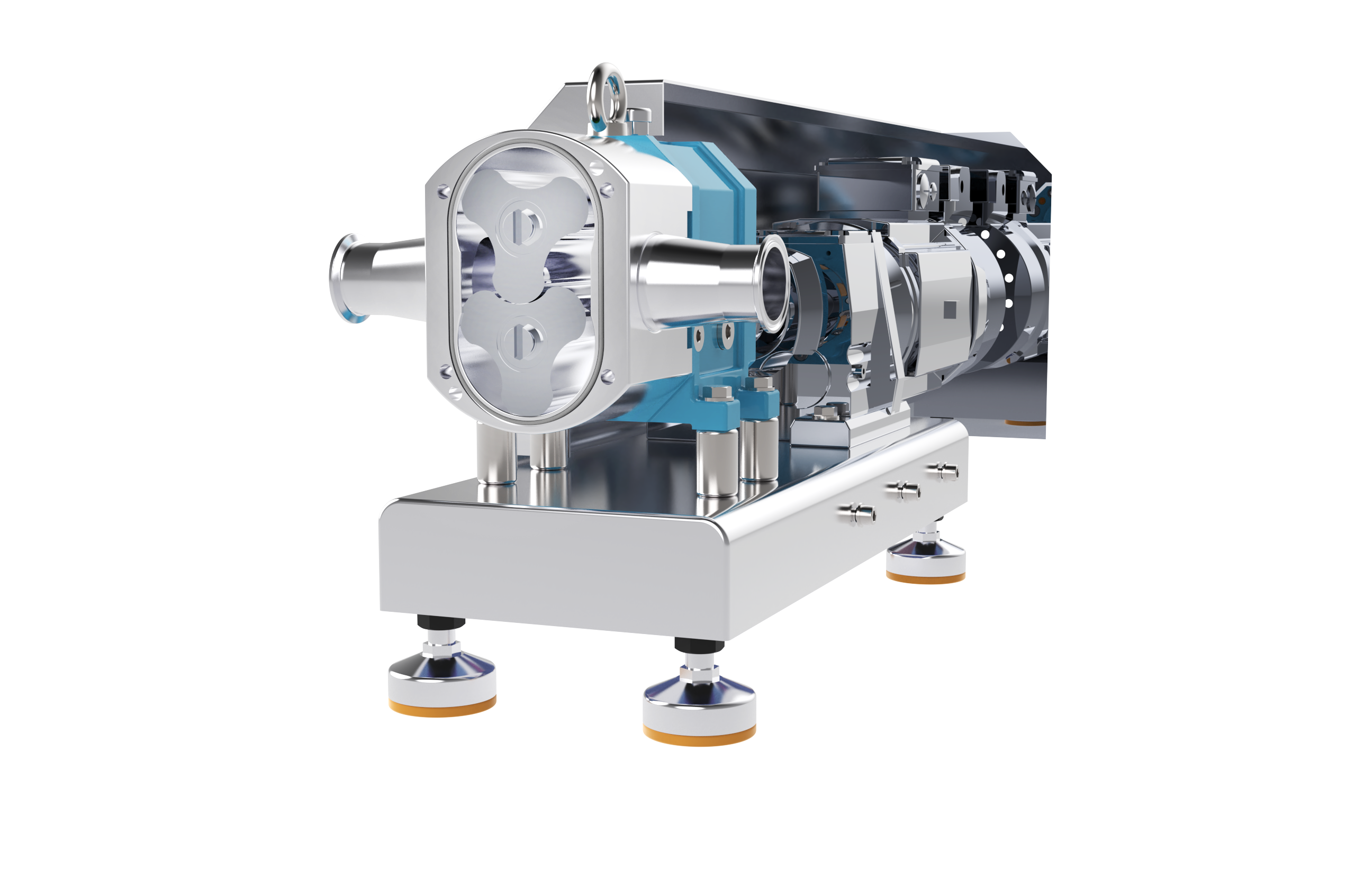

Sanitary rotor pump

Pumpseen sanitary rotor pump, to meet the requirements of food and medicine industry health level, in line with the sanitary level of online cleaning standards, internal smooth without dead corners, support CIP,SIP, high manufacturing precision, small vibration, smooth operation.

Products Rotor pump

Submit information

Product introduction

Product structure

Technical characteristics

Scope of application

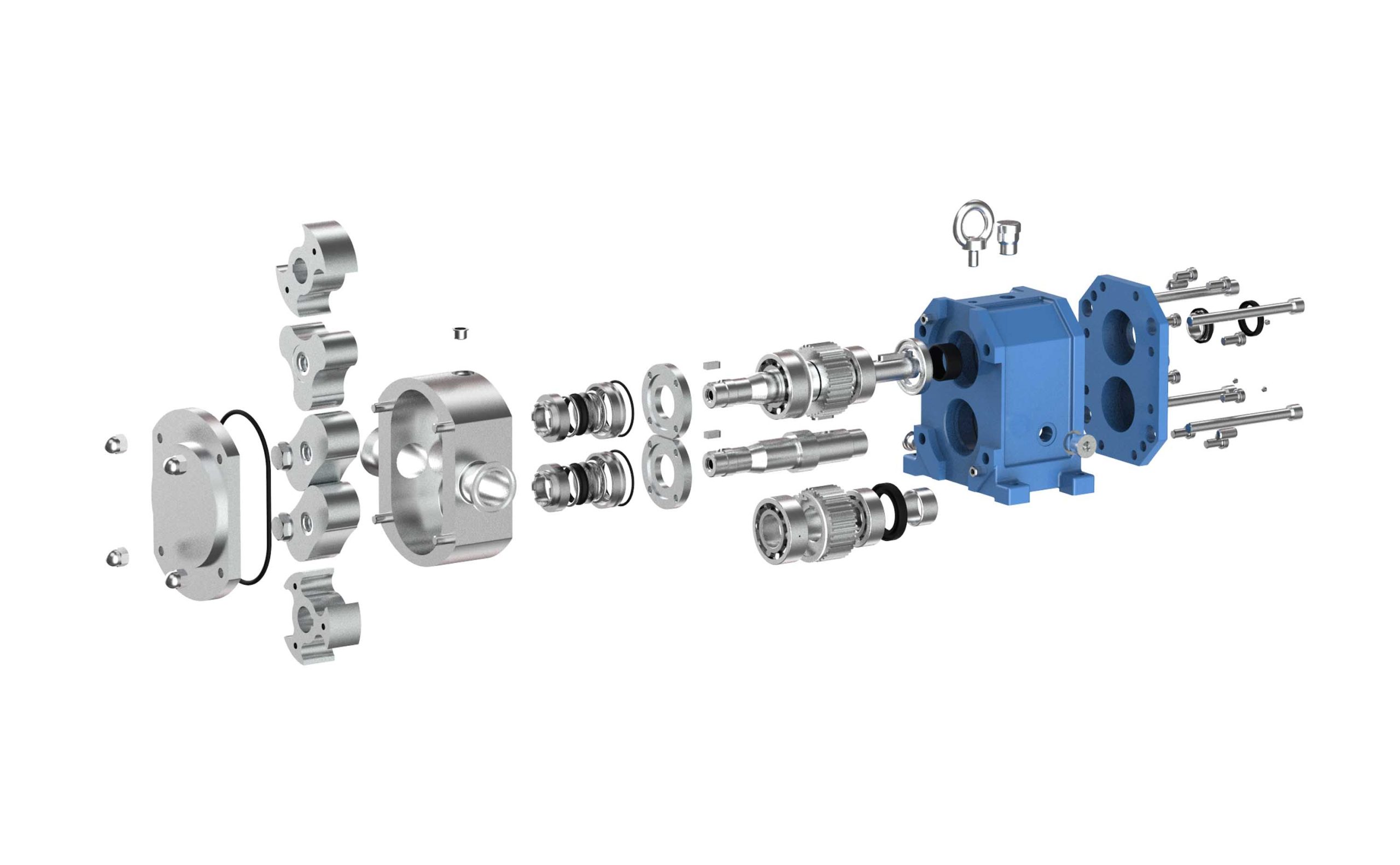

**Pumpseen sanitary rotor pump product structure**

Rotor form

Two-leaf linear, two-leaf butterfly, two-leaf spiral; Three-leaf linear, three-leaf butterfly, three-leaf spiral, etc

Rotor material

Carbon steel, stainless steel 304, stainless steel 316L, duplex stainless steel 2205, super stainless steel 904L, etc

Pump cover

The pump cover design is fixed by four nuts, which is convenient for daily quick opening to check the condition of the flow parts in the pump chamber. By opening the quick opening pump cover, the main flow parts in the pump chamber can be quickly repaired without disassembling the pipeline

Pump casing

The pump shell adopts the monolithic casting design to ensure the high assembly accuracy. Through the CFD flow performance optimization design, it has a large cross section and smooth flow performance, anti-accumulation and blockage, and has a strong ability to pass particles

Synchronous gear cavity

The synchronous gear is installed in the gear cavity filled with lubricating oil, and a pair of self-aligning roller bearings and a pair of double-row cylindrical roller bearings together form the transmission system. Synchronous gear execution of AGMA9 processing precision, the material is carburized and quenched by high-quality low-carbon alloy steel to ensure strength and accuracy.

Pump shaft

The upper and lower positions of the drive shaft and the driven shaft are interchangeable. Seals designed to protect the pump shaft so that the pump shaft does not come into contact with the medium; The material is made of high chromium alloy steel to ensure stable strength.

Mechanical seal

A variety of mechanical seal forms and materials are available, single mechanical seal, double mechanical seal, packing seal, multi-lip seal, Pumpseen’s new self-lubricating dry operation mechanical seal, and with a variety of mechanical seal washing schemes, to ensure the rationality of equipment use.

Flow range: 1-300m³/h
Pressure range: 0-16bar
It can transport solid particles up to 70mm in diameter
Viscosity range: 1-1000000cps
Temperature range: 0-200℃
In line with the sanitary design, the interior is smooth without dead corners, and SIP/CIP can be realized
A variety of materials, forms of rotor can be selected to meet different process requirements
Strong self-priming ability, no need for liquid infusion to start
The structure is symmetrical, can be positive and negative two-way operation, just change the driving rotation direction, you can change the transmission direction
Lined with wear-resistant metal liner, prolongs service life and reduces spare parts cost
Convenient maintenance, no need to disassemble pipelines, reduce downtime and maintenance time and labor costs
Diversified flange connection forms, flexible installation forms and pipeline connection forms
